Universal Boiler Control Simplifies Heating System Upgrades

Hydrolevel Company has introduced a redesigned version of its HydroStat multifunction boiler control for residential and commercial hydronic heating systems. The control combines temperature limit regulation and optional low water cut-off functionality in a single device designed for oil-fired and gas-fired boilers, supporting both replacement projects and system upgrades.

Temperature control and boiler protection are essential for safe and efficient boiler operation. The updated HydroStat platform is intended to replace common cold-start and triple-action Aquastat controls while reducing installation complexity through a universal hardware design.

Universal boiler control for heating system retrofits

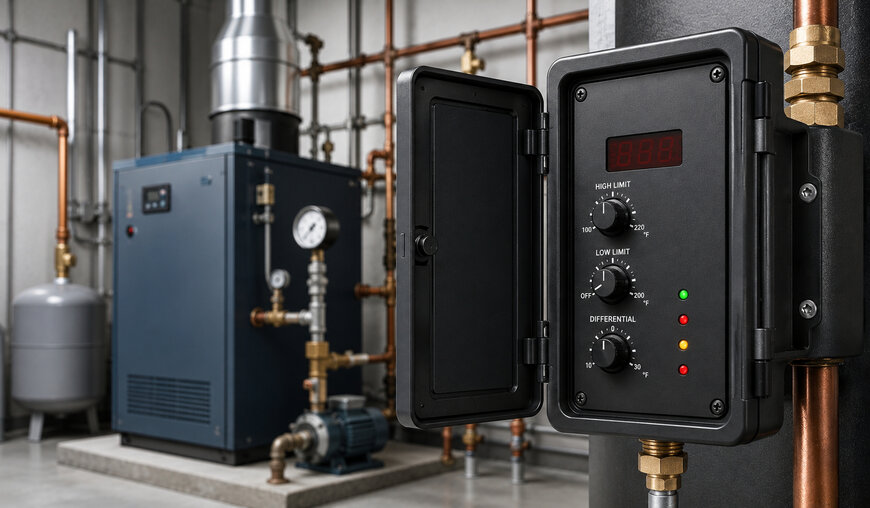

The redesigned HydroStat features a taller enclosure to improve wiring accessibility during installation and maintenance. Removable door hinges simplify setup, while a water-resistant housing with recessed LED indicators helps reduce the risk of moisture intrusion in service environments.

The product is available as the Model 3200 Plus for gas-fired boilers and the Model 3250 Plus for oil-fired boilers. Both versions provide a common installation platform with simplified wiring, integrated diagnostics, adjustable operating parameters and optional low water cut-off protection.

The control can be installed on an existing immersion well, allowing contractors to retain the existing sensor location while replacing older temperature controls. This approach reduces installation time, minimizes wiring modifications and enables wholesalers to stock fewer replacement models for multiple boiler configurations.

Integrated low water cut-off protection
When installed together with a Hydrolevel Electro-Well, the controller automatically enables its low water cut-off function without requiring an additional safety controller. This provides protection against dry-firing caused by insufficient water levels while reducing installation cost and component count.

Installer configuration is performed using dial-based controls for temperature limits and differential settings. The simplified adjustment method is intended to reduce commissioning time and minimize field configuration errors.

Digital diagnostics for maintenance
A three-digit LED display continuously indicates the measured boiler temperature during operation. When installers adjust the high limit, low limit or differential settings, the display immediately shows the selected setpoint. During system start-up, the controller automatically cycles through the configured operating parameters, allowing technicians to verify settings before operation.

The controller also incorporates four integrated diagnostic LEDs that indicate operating status, high-limit shutdown, activation of the low water cut-off function when connected to an Electro-Well, and low water fault conditions. These indicators support faster fault diagnosis and maintenance activities.

Adjustable operating parameters
The HydroStat supports a low temperature limit that can be disabled or adjusted between 110°F and 200°F. The high temperature limit is adjustable from 100°F to 220°F, while the differential can be configured between 10°F and 30°F.

These operating ranges allow the controller to be configured for both cold-start boilers and systems equipped with tankless coils. According to Hydrolevel, the updated housing maintains the existing terminal designations used on common Aquastat controls, allowing technicians to perform replacements without changing familiar wiring layouts. The platform also supports optional boiler reset functions, including outdoor reset capability when used with the appropriate sensor accessories.

Additional context: Technical specifications and competitive benchmarking
Within the hydronic heating controls market, multifunction digital boiler controls are commonly compared according to supported boiler types, operating temperature range, low water cut-off integration, installation compatibility and diagnostic capabilities.

HydroStat distinguishes itself by combining temperature limit control, optional low water cut-off protection and boiler reset functionality in a single controller when used with the Hydrolevel Electro-Well. The unit supports low temperature settings from Off or 110°F to 200°F, high temperature settings from 100°F to 220°F and automatic or adjustable differential control depending on the application. It is also designed as a direct replacement for several legacy Honeywell Aquastat models while maintaining existing wiring conventions.

Comparable products include the Resideo L7224U electronic Aquastat, which provides electronic temperature control and digital diagnostics but requires a separate low water cut-off device when such protection is needed. Beckett's AquaSmart series also integrates electronic boiler control functions but typically requires replacement of the immersion well during installation. As a result, comparison between these products generally focuses on retrofit compatibility, integrated safety functions, operating temperature range and installation complexity rather than differences in basic temperature control performance.
