AI surveillance cameras support modular security system upgrades

AI-based video surveillance systems are evolving toward modular hardware and edge analytics to simplify upgrades and improve operational continuity in security infrastructure. In this context, Hanwha Vision introduced the second generation of its X Series Plus cameras based on the Wisenet 9 system-on-chip platform.

Modular architecture reduces upgrade complexity in surveillance systems

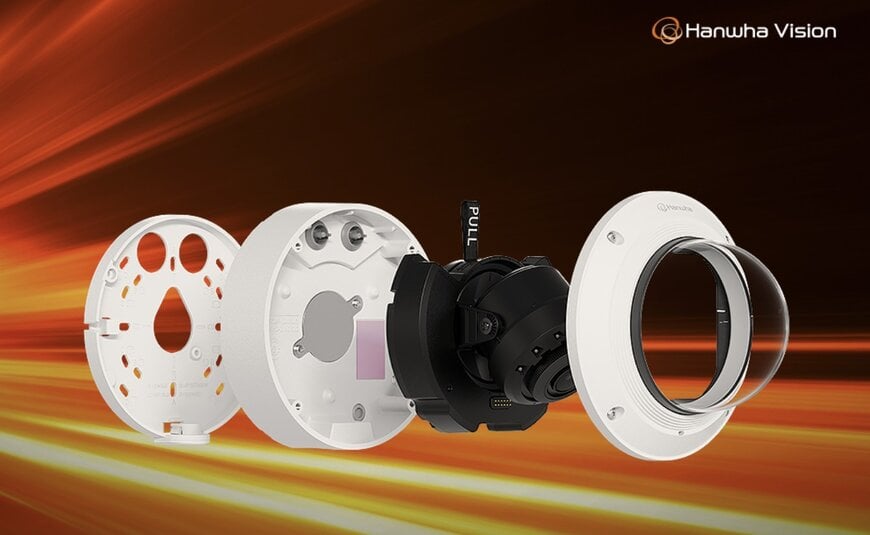

The second-generation X Series Plus cameras are designed to simplify installation and lifecycle management through a magnetic modular structure. This approach allows camera modules and dome covers to be replaced without changing the full installation, reducing intervention time during upgrades or maintenance.

Compatibility with first-generation Wisenet X Series Plus modular components allows existing installations to be upgraded by replacing selected hardware elements rather than complete systems. This approach can reduce installation effort and contribute to lower total cost of ownership (TCO) within large surveillance deployments such as transport infrastructure, industrial facilities and commercial buildings.

Dual NPU architecture separates AI analytics from image processing
The camera platform is built around the Wisenet 9 system-on-chip (SoC), which integrates a dual neural processing unit (NPU) architecture. The hardware separates resources for image enhancement and AI-based object analytics, allowing both processes to run simultaneously.

This architecture supports near real-time object detection while maintaining video quality and processing stability. Such capabilities are relevant in applications requiring automated monitoring, including industrial safety systems, perimeter protection and smart building security within the broader physical security technology ecosystem.

Hardware redundancy and power flexibility for continuous operation
The system is designed for continuous operation through redundancy features including dual SD card slots for local data backup. Power options include 12 V DC, Power over Ethernet (PoE) and PoE+.

Infrared illumination performance varies depending on the power configuration. When powered via PoE+, the infrared range reaches up to 50 m, compared to 30 m when powered through standard PoE. This allows extended monitoring distances in low-light or night-time conditions.

Additional reliability features include tamper detection capable of triggering alerts if the dome housing is opened, supporting data protection and operational continuity in security-critical environments.

AI-based bandwidth optimisation and energy management
Energy consumption and data transmission requirements are addressed through Eco Mode, which combines WisePower ECO and WiseStream technologies.

WisePower ECO dynamically adjusts power consumption based on infrared illumination requirements, while WiseStream applies AI-based object detection to prioritise image quality for relevant objects such as people or vehicles. Background areas and non-relevant objects are compressed at higher rates, reducing bandwidth and storage requirements while maintaining evidential image quality.

These functions support more efficient data handling within networked video management systems and digital security infrastructure.

Cybersecurity compliance and AI governance requirements
The X Series Plus platform meets FIPS 140-3 Level 3 requirements, a cybersecurity standard specifying cryptographic module protection levels commonly required in government and enterprise deployments.

Hanwha Vision also provides a Software Bill of Materials (SBOM) for the devices, allowing visibility into software components to support vulnerability management and cybersecurity compliance processes.

In addition, the company reported certification to ISO/IEC 42001, a standard related to Artificial Intelligence Management Systems (AIMS), addressing governance frameworks for AI development, risk management and accountability.

The introduction of the second-generation X Series Plus cameras forms part of the ongoing expansion of the Wisenet 9 product family, which includes multiple form factors and application-specific models intended to address changing requirements in the global video surveillance market.
