BACnet/IP Enhances HVAC Control Connectivity

Q-PAC is releasing an updated Premium Control Panel that standardizes BACnet/IP connectivity alongside traditional serial communication for commercial HVAC fan systems. This controller upgrade allows facilities teams to implement high-speed Ethernet integration within the building data ecosystem while retaining the ability to interface with legacy mechanical infrastructure.

Networking and Protocol Flexibility
The addition of BACnet/IP via a network switch allows the Premium Control Panel to default to IP-based connectivity, bypassing the bandwidth constraints of traditional RS-485 serial infrastructure. While pushing toward high-speed Ethernet capabilities, the architecture preserves standard BACnet MS/TP support. This dual-protocol approach ensures that consulting engineers and mechanical contractors can specify a single control platform across diverse deployment scenarios, ranging from new construction projects requiring high-bandwidth data exchange to retrofit environments strictly relying on existing serial networks.

Operational Data Visibility and Hardware Diagnostics

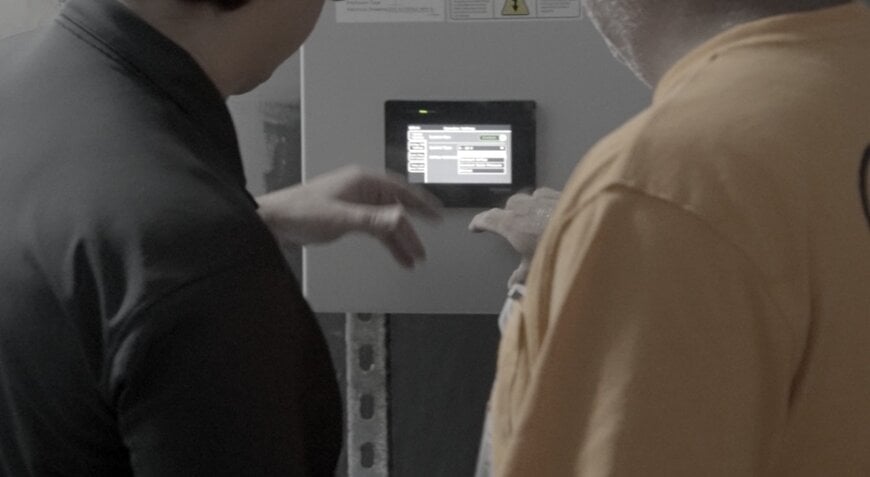

Operating over standard Ethernet networks significantly expands remote monitoring capabilities. Facility stakeholders gain immediate access to critical system points, including airflow metrics, power consumption, individual motor status, and system alarms. Utilizing automated controls for either constant static pressure or constant airflow, the panel allows operators to optimize energy usage and diagnose mechanical faults remotely. Furthermore, maintaining local control features—such as the touchscreen human-machine interface (HMI), a 0-10V potentiometer, and a hand/off/auto switch—ensures that on-site technicians retain manual override and diagnostic capabilities during network outages.

Enclosure Standards and Deployment Specifications
Engineered for both indoor and outdoor commercial environments, the hardware is certified as a UL 508A panel, meeting stringent industrial control panel safety and wiring standards. The system configuration and network object mapping are fully standardized within the device documentation, providing engineers with a comprehensive object guide to facilitate seamless integration into third-party building management platforms without disrupting established programming workflows.

Additional Context
This section details technical specifications and competitive benchmarking not included in the original news release.

Within the commercial HVAC sector, integrating advanced telemetric data from multi-fan arrays into centralized building automation systems requires high-bandwidth communication. Traditional RS-485 MS/TP networks typically operate at maximum baud rates of 115.2 kbps, which can introduce significant data latency when polling dozens of data points across multiple variable frequency drives or electronically commutated motors. By transitioning to standard BACnet/IP, controllers can operate at 10/100 Mbps or 1 Gbps Ethernet speeds, eliminating data bottlenecks. Competitors in the fan array and HVAC drive market often require supplementary expansion cards or gateway devices to achieve IP-level connectivity. Native integration of the IP protocol directly into the primary control panel reduces physical footprint, decreases hardware costs, and minimizes the network configuration time required during the commissioning phase.

Edited by Aishwarya Mambet, Induportals Editor, with AI assistance.
