Integrated Access Control Hardware for Modular Building Security
Hikvision expands its HiWatch and DS-K2600T series to streamline installation and multi-door management within the automotive data ecosystem and commercial security sectors.
www.hikvision.com
The new range of terminals, readers, and controllers provides a scalable architecture for access control, integrating intercom functions and high-level communication protocols to simplify deployment for electrical installers. These devices are designed for diverse technical environments, ranging from standalone entry points to structured multi-gate systems requiring centralized logic and third-party integration.
Unified Authentication and Intercom Terminals

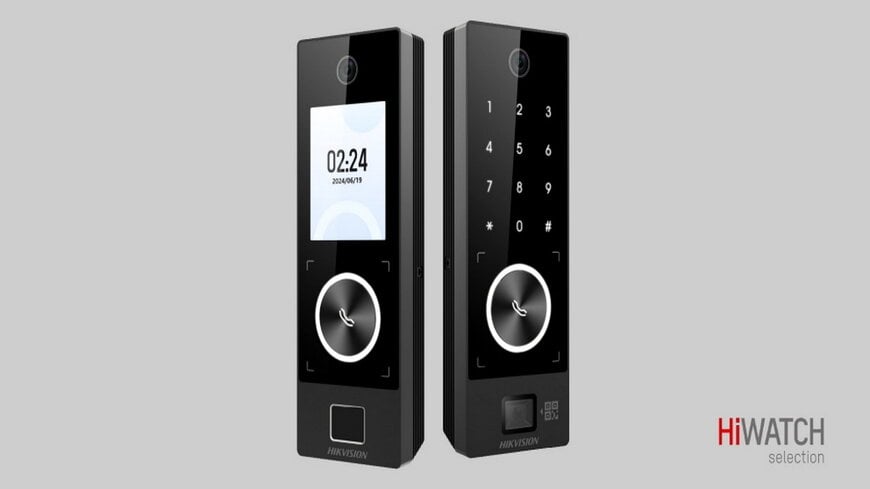

The HiWatch DS-K1T323 and DS-K1T510 series consolidate access control and intercom functionality into a single hardware unit. This integration allows for bidirectional audio communication alongside user identification. To address varying security requirements, the terminals support multiple authentication methods, including M1 card encryption, PIN entry, QR code scanning, fingerprint biometrics, and hands-free proximity modes.
For hardware deployment, the devices utilize a 12 Vdc or Power over Ethernet (PoE) power supply. The PoE configuration is specifically engineered to manage and power the electric lock directly from the terminal, reducing the need for auxiliary wiring and secondary power sources. Commissioning is executed via an Access Point mode, which enables initial activation without a PC, while subsequent granular parameters are managed through a web interface compatible with mobile and desktop browsers.
Structural Logic for Multi-Gate Environments
For complex installations, the DS-K2600T series controllers facilitate the management of two or four doors within a unified system. These controllers act as the central intelligence in a digital supply chain of security data, supporting industry-standard protocols including TCP/IP, RS-485, Wiegand (W26/W34), and Open Supervised Device Protocol (OSDP).
Technical reliability is maintained through several hardware and software safeguards:
- Operational Continuity: An optional battery backup and stand-alone mode ensure that access rules and event logging remain functional during network outages.
- Data Integrity: Communication between readers and controllers utilizes data encryption to prevent unauthorized interception.
- Advanced Logic: The system supports complex security configurations such as anti-passback, door interlocking, multi-card authentication, and "super card" overrides.
Physical Durability and System Integration
The hardware features a slim profile designed for mounting in constrained spatial environments. With an IP65 ingress protection rating, the terminals and readers are certified for both internal and external use, providing resistance to dust and low-pressure water jets.
Integration with broader security infrastructures is achieved through ISUP 5.0 and ISAPI protocols, allowing the access control layer to communicate with third-party software. On-board input/output interfaces and dedicated fire alarm relays enable automated event linkage, ensuring that door states respond dynamically to external triggers such as emergency alarms or building management system (BMS) commands.
Comparative Technical Context
In the landscape of professional access control, the Hikvision DS-K2600T series competes with established modular controllers. While many entry-level systems rely on proprietary closed-loop protocols, the DS-K2600T distinguishes itself by offering native OSDP support. Compared to standard Wiegand communication, OSDP provides bidirectional encryption and higher data rates, addressing the vulnerability of credential skimming often found in older, non-encrypted security architectures.
Edited by Evgeny Churilov, Induportals Media - Adapted by AI.
