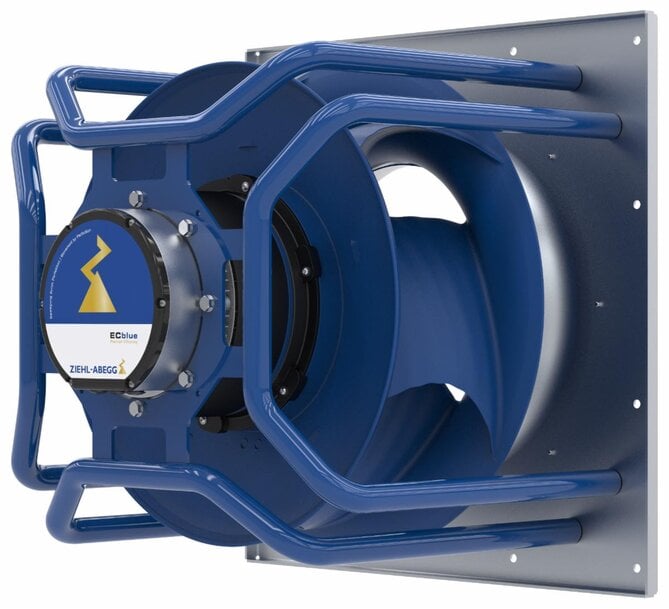

ZIEHL-ABEGG introduces ZAbluefin centrifugal fan
ZIEHL-ABEGG presents ZAbluefin fan with biomimetic blade design to improve efficiency, reduce noise, and support flexible HVAC system integration.
www.ziehl-abegg.com
ZIEHL-ABEGG has introduced the ZAbluefin centrifugal fan, a biomimetic fan design developed for HVAC systems and air handling units.
The solution targets energy-efficient ventilation and low-noise airflow, addressing increasing demands for performance, sustainability, and regulatory compliance in building systems.
Biomimetic blade aerodynamics
The ZAbluefin fan incorporates a corrugated leading edge and twisted blade geometry inspired by biomimetic principles. This design improves airflow characteristics, particularly under non-ideal inlet conditions.
A serrated trailing edge reduces turbulence and flow separation, contributing to:
- Higher aerodynamic efficiency
- Reduced energy consumption
- Lower sound generation
The fan produces diffuse sound radiation with minimal tonal noise, making it suitable for noise-sensitive environments such as commercial buildings and technical equipment rooms.
Performance and operational flexibility
The impeller design provides a wide operating range without flow separation, allowing efficient performance across varying duty points. This enables system designers to adapt airflow requirements without oversizing equipment.
Key performance characteristics include:
Performance and operational flexibility
The impeller design provides a wide operating range without flow separation, allowing efficient performance across varying duty points. This enables system designers to adapt airflow requirements without oversizing equipment.
Key performance characteristics include:
- Airflow up to approximately 90,000 m³/h
- Static pressure capability up to approximately 2,500 Pa
- High efficiency across real operating conditions
This flexibility supports both compact air handling units and large-scale ventilation systems.
System integration and scalability
The ZAbluefin series is available in sizes ranging from 250 to 1120 mm, enabling a standardized platform across multiple applications. This simplifies system design, specification, and spare parts management.
The design supports installation in constrained environments while maintaining performance, enabling more compact HVAC system configurations.
Installation and mounting concept
A dedicated spider mount system complements the fan design, simplifying installation and reducing assembly complexity. The one-piece mount supports multiple orientations, including horizontal and vertical configurations.
The mounting solution:
System integration and scalability
The ZAbluefin series is available in sizes ranging from 250 to 1120 mm, enabling a standardized platform across multiple applications. This simplifies system design, specification, and spare parts management.
The design supports installation in constrained environments while maintaining performance, enabling more compact HVAC system configurations.
Installation and mounting concept
A dedicated spider mount system complements the fan design, simplifying installation and reducing assembly complexity. The one-piece mount supports multiple orientations, including horizontal and vertical configurations.
The mounting solution:
- Reduces installation time and potential errors
- Minimizes inventory complexity through standardized components
- Maintains aerodynamic performance without airflow disruption
Integrated handling features improve safety and ease of installation, while the robust construction ensures durability in industrial environments.
Operational impact and industry relevance
The ZAbluefin fan system contributes to:
Operational impact and industry relevance
The ZAbluefin fan system contributes to:
- Reduced energy consumption in ventilation systems
- Lower noise levels in occupied and technical spaces
- Simplified installation and maintenance processes
- Improved lifecycle cost efficiency
These factors are increasingly important as HVAC systems evolve toward higher efficiency and sustainability standards.
Outlook for HVAC technologies
The development of biomimetic fan designs reflects a broader trend toward optimizing airflow efficiency and reducing environmental impact. As building regulations become more stringent, advanced aerodynamic solutions will play a key role in future HVAC system design.
Edited by an industrial journalist, Lekshman Ramdas, with AI assistance.
